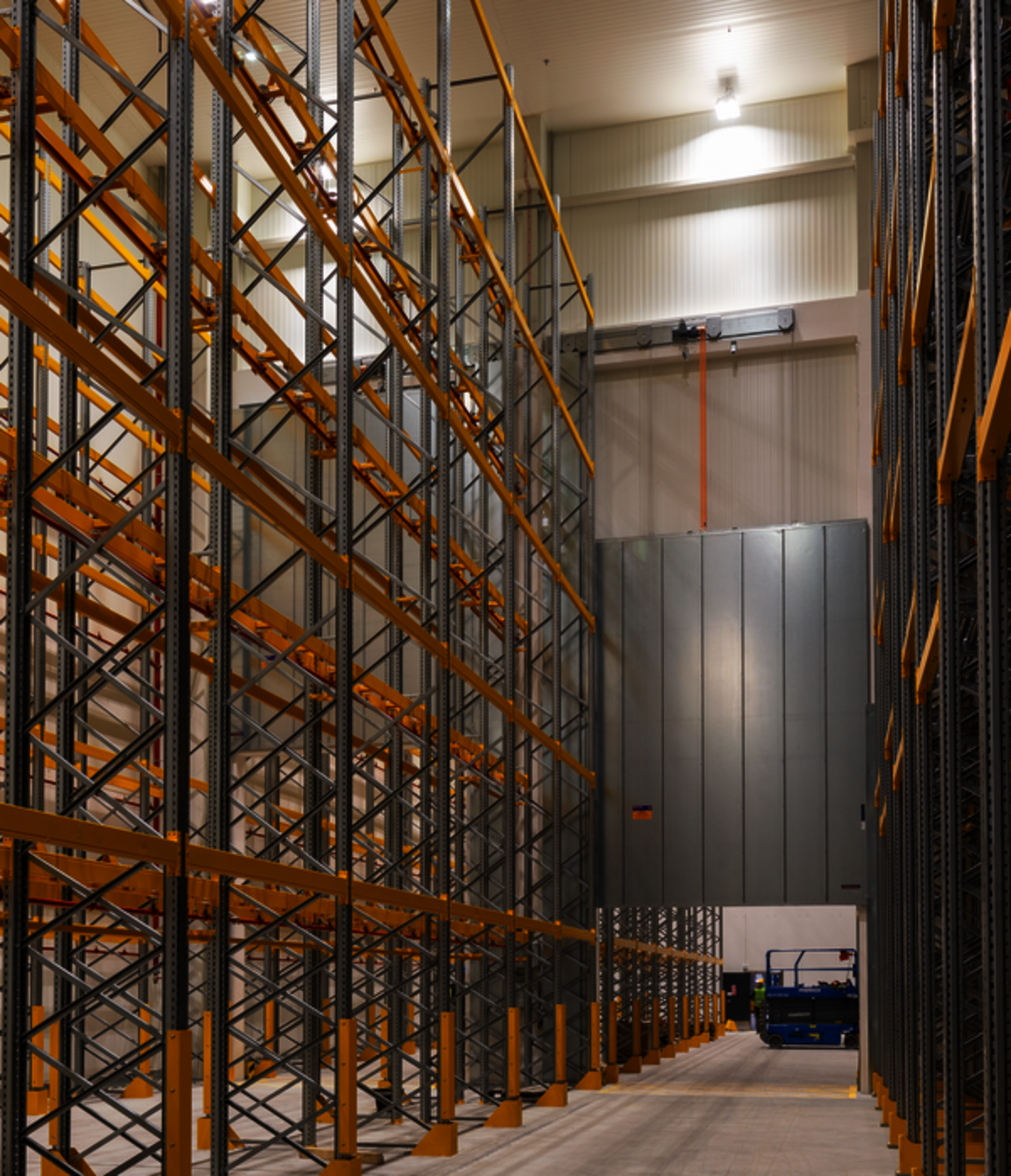

Tortec's fire protection overhead doors offer a high-quality solution even with narrow side ratios and ensure reliable separation of large fire compartments.
Fire protection overhead doors are tested in accordance with European fire protection requirements and comply with product standards EN 16034 and EN 13241, which means that Tortec products have a CE mark and may be used in any country within the EU.
To ensure your safety in the event of fire, Tortec lift gates meet fire protection requirements up to EI290, depending on the version.
Smoke-tight fire protection for safe escape and rescue routes is recommended for all areas in which people need to be protected from the spread of life-threatening smoke gases in the event of a fire. Tortec fire protection overhead doors are also available in smoke protection (S200) and tight-closing (Sa) versions.
As a family business, we are aware of our responsibility for future generations. We therefore create environmental product declarations (EPDs) for our products in accordance with ISO 14025. These declarations provide a transparent overview of the environmental impact of our products and support our customers in choosing sustainable solutions.

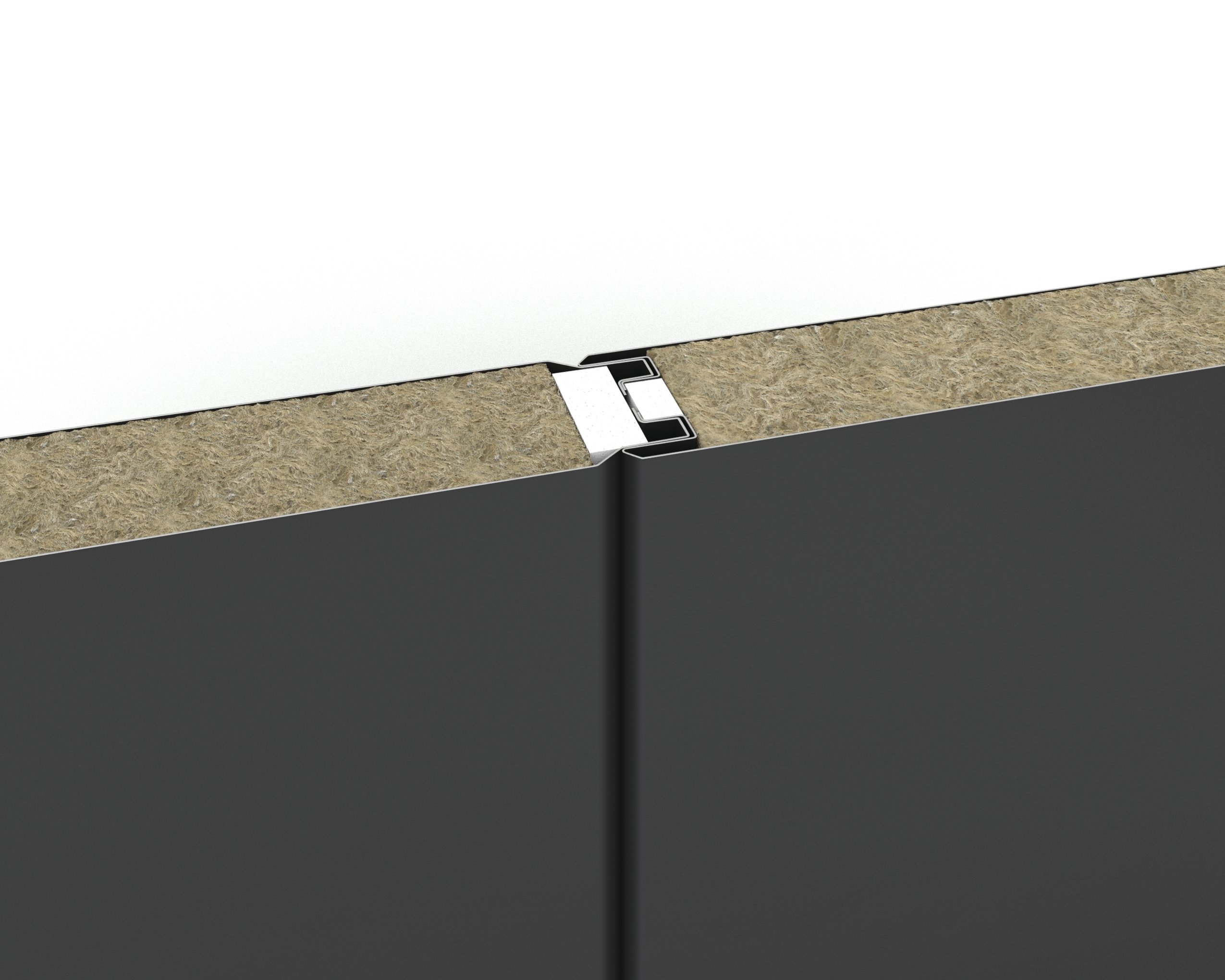

The uniform thickness of the door leaf elements of 72 mm offers an equivalent door construction for every function. Thanks to a patented V-groove at the element joint and invisible screw connections, Tortec sliding gates offer a modern gate appearance. Up to a height of 9 meters, the individual elements are made from a single piece without any disruptive weld seams.
Door leaf elements are supplied as standard in galvanized sheet steel with a high-quality pearlgrain surface.
The following surfaces and colors are available for an aesthetic touch:

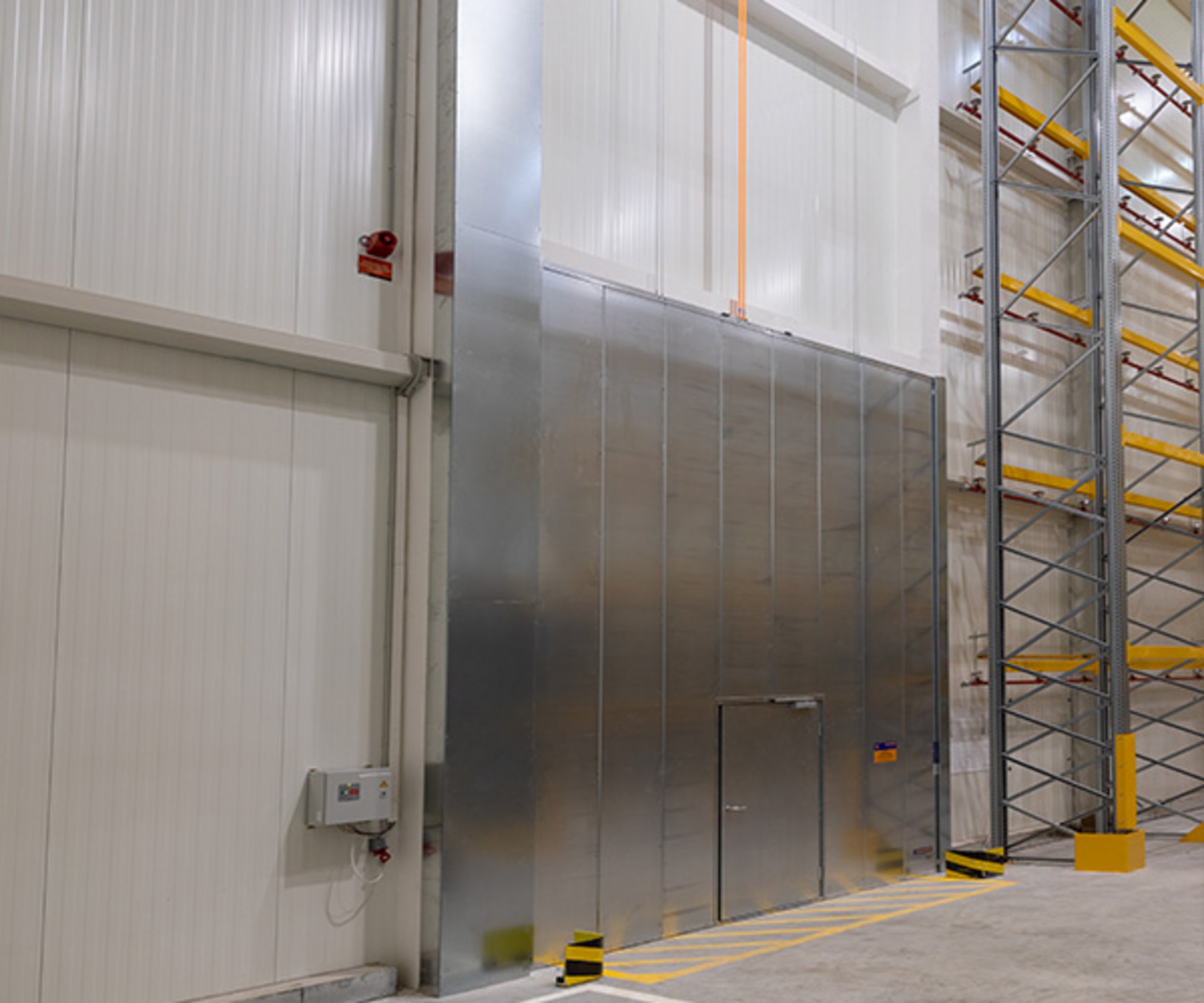

Sliding fire protection doors from Tortec can be optionally equipped with integrated wicket doors. This rebated door construction without a threshold allows people to pass through quickly and safely without having to open the entire door. A 22 mm high threshold is available as an option, ideal for exit ramps in underground garages. Depending on requirements, up to two wicket doors can be integrated per door leaf.
Wicket door monitoring via radio enables reliable monitoring of the door position. Radio transmission takes place via a magnetic contact and a transmitter in the door leaf, with a separate receiver for wall mounting. Bolt switch contacts and electric strikes are also available as options.
Equipped with standard HDC 35-1 slide channel overhead door closers or optionally integrated concealed overhead door closers, as well as 3-dimensionally adjustable hinges, Tortec wicket doors offer maximum functionality and are easy to adjust. A mortise lock in accordance with DIN 18250 is fitted as standard, with the option of panic functions in accordance with EN 179 or EN 1125 for wicket doors that open into the reveal.
Glazing profiles for wicket doors and door elements in multi-purpose and fire protection class EI230, EI260 and EI290 are made of galvanized steel and powder-coated to match the door leaf surface as standard.
Alternatively, the profiles are also available in brushed stainless steel V2A (1.4301) or powder-coated in RAL and special colors.

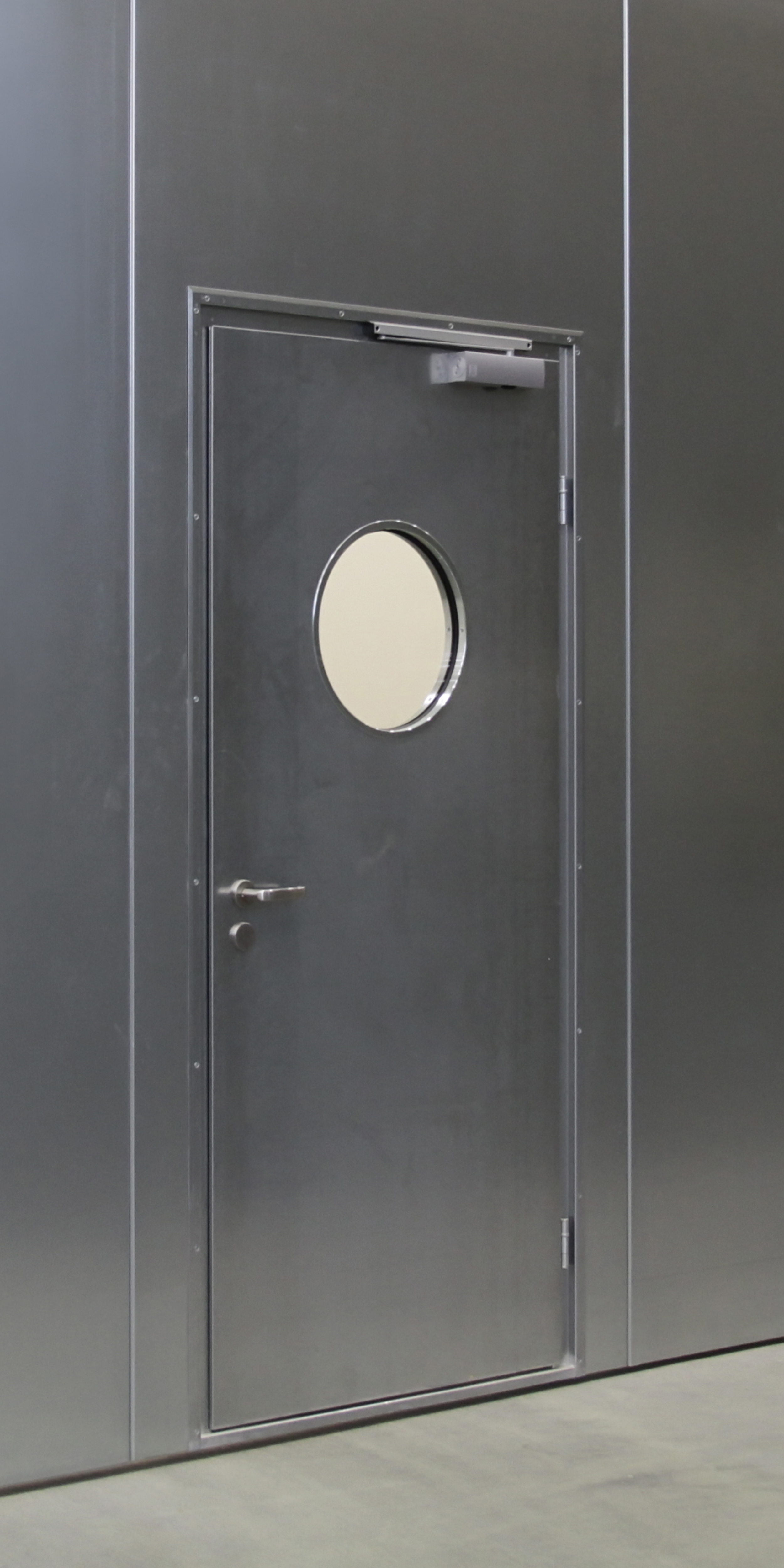

Wicket doors with round glazing with a diameter of 400 mm are available as standard.

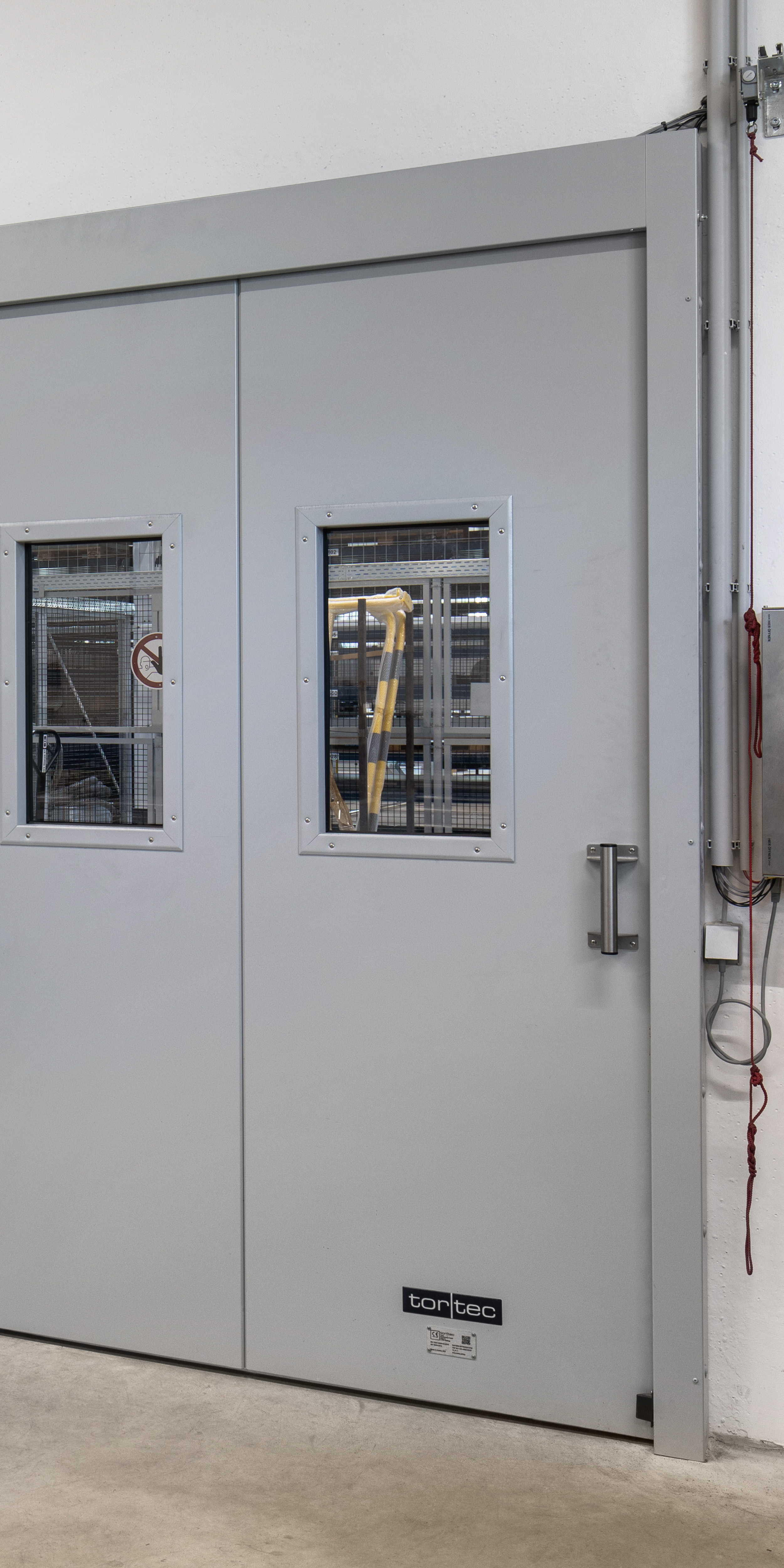

Rectangular glazing is available in
Rectangular fire-resistant and multi-purpose glazing is available:
Hold-open devices play a crucial role in building safety. They ensure that doors and gates can be conveniently held open in everyday life and close automatically in the event of a fire to ensure safe smoke and fire compartmentation. Whether in public buildings, offices or industrial buildings - our hold-open systems offer you reliable solutions that meet the highest safety standards. Discover our innovative systems and let us convince you of our expertise in the field of fire protection.

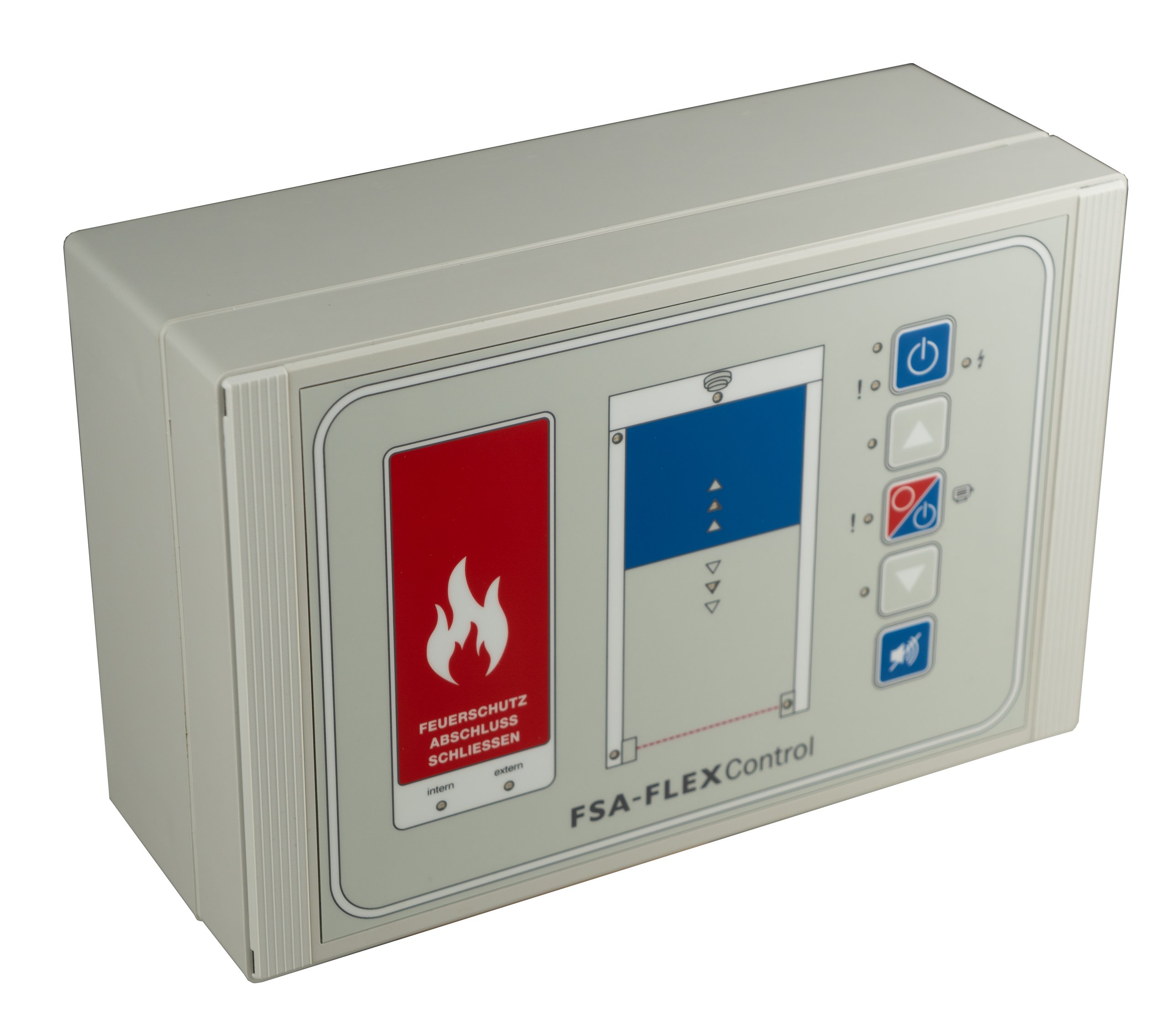

The FSA-FLEXControl (dead man, 400V) is a power supply unit, operator control, manual button, alarm memory and reset button all in one. Together with approved fire detectors and the connection option for the motor brake, it forms a hold-open system for controlling lift gates.
If the cable entries with glands on the underside of the housing are used, the FlexControl has a protection rating of IP54. A signal transmitter is integrated for local acoustic signaling, which can be extended by an external signaling device (FSA-OAW + combination signal light) to visualize a door movement.
Translated with DeepL.com (free version)
The FAA-Plus hold-open system for lift gates combines the power supply, battery backup, visualization, fire detector evaluation, manual release button and reset device in a single housing. It offers the option of connecting conventional and wireless fire detectors, motor brakes and connection to a central fire alarm system. The battery backup ensures that the fire protection lift gate can be kept open even in the event of a power failure. A signal transmitter is integrated for local acoustic signaling, which can be extended by an external signaling device (combination signal light) to visualize a door movement.
